Fabrication

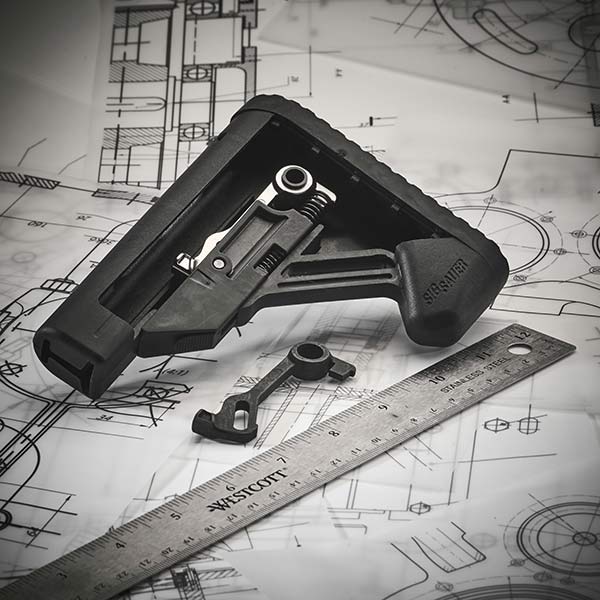

Both the diameter and perpendicularity of the through hole in relation to the profile of the slot at the other end are critical for functionality. Those features, as well as the overall length of the latch, make this a challenging part to mold with no distortion in the finished product. The part is sintered near-net shape, requiring only a reaming operation to achieve the tight ± 0.02 mm (± 0.001 inch) tolerance on the through hole, in addition to several other minimal secondary operations. By controlling factors such as gate location, injection velocity, hold pressure, and barrel temperature, the MIM process was utilized in a way that repeatedly produces quality parts in the final assembly.

Results

This component was designed for MIM as a result of many design sessions with the customer, which highlights the need to find a fabricator early in your design process. Due to the irregular geometry of the part, it would be extremely challenging and expensive to try to manufacture this component via traditional methods. The MIM process allows this part to be produced with no metal waste in a cost-effective manner.
